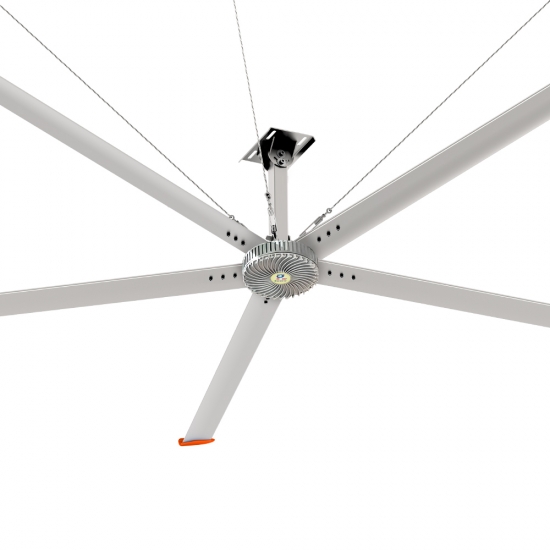

Qixiang HVD-H7200 24FT 7.2M PMSM Industrial Hvls Ceiling Fan

High wind volume and low speed make the space produce 1-3 levels of three-dimensional natural wind, covering a diameter of 40-50m (1450m2), somatosensory cooling of 3-5 ° and silence value of 38dB, which is close to the standard of sleep level. Make the working environment more comfortable and healthy, improve the production efficiency of employees, make the working space spacious and improve the utilization rate of space, and ensure the safety of operation, which is not only airflow, but also cash flow.

Noise:
＜38db
Diameter:
7.2m
Coverage Area:
13800m³/min
Frequency:
50/60HZ
No. of Blades:
5
Power Supply:
380V 2.6A
Rotate Speed:
55RPM
Power:
1.5KW

Products description

Qixiang HVD-H7200 24FT 7.2M PMSM Industrial Hvls Ceiling Fan

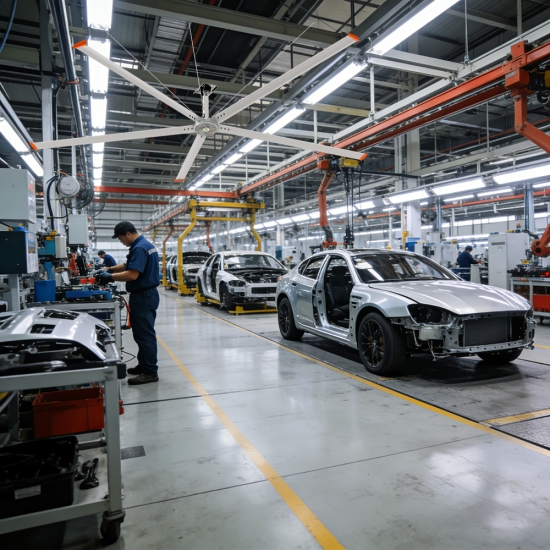

Permanent Magnet Gearless Direct Drive PMSSM HVLS ceiling fan will be the trend of HVLS ceiling fan soon. It can be widely used in large industrial plants, logistics warehouses, shopping malls, gymnasiums, leisure clubs, school halls, large restaurants, stadiums, villas, government hall, automobile (train) stations, livestock farms, casting industry, metallurgical industry, etc.

1）Product Parameters(Big Sizes)
Model	HVD-H7200	HVD-B7200	HVD-B6700	HVD-B6200
Diameter	7.2m(24ft)	7.2m(24ft)	6.7m(22ft)	6.2m(20ft)
Blades Qty	5	5	5	5
Weight	115KG	109KG	105KG	100KG
Power	1.3KW	0.88KW	0.88KW	0.88KW
Max Speed	58RPM	50RPM	55RPM	60RPM
Max air Volume	15197m3/min	14515m3/min	12560m3/min	10747m3/min
Power Supply	380V/220V	380V/220V	380V/220V	380V/220V
MAX. Current	3.1A/4.5A	2.2A/3A	1.8A/3A	1.8A/3A
Noise Level	<39db	<39db	<39db	<39db

2)Product Parameters(Small Sizes)
Model	HVD-S5200	HVD-S4200	HVD-S3600	HVD-S3000	HVD-S2500
Diameter	5.2m(17ft)	4.2m(14ft)	3.6m(12ft)	3.0m(10ft)	2.5m(8ft)
Blades Qty	5	5	5	5	5
Weight	78KG	75KG	72KG	70KG	65KG
Power	0.66KW	0.66KW	0.66KW	0.66KW	0.66KW
Max Speed	70RPM	80RPM	90RPM	100RPM	120RPM
Max air Volume	7065m3/min	5306m3/min	4522m3/min	3140m3/min	2543m3/min
Power Supply	220V	220V	220V	220V	220V
MAX. Current	2.6A	2.6A	2.6A	2.6A	2.6A
Noise Level	<39db	<38db	<38db	<38db	<38db

hvls fans motor

1.Permanent magnet servo drive motor
1) IP64,small size,no lubricating oil, low energy consumption, no maintenance, can work for nearly 15 years, beautiful appearance, especially suitable for villas, churches, cafes, restaurants, etc.
2) The motor is designed with high pyrolysis technology and the operating temperature is about 38 °C.
3) Internal precision Hall induction digital closed-loop control, can correctly control the switch station, stepless speed change.

2.Integrated control box

Servo drive system can make fan have a fast reaction with DSP control core and inner complex control algorithm. In addition, it has continuously variable, precise localization and the protection system with over voltage,over currents.

3.Fan blades

1) 7075 aviation aluminum magnesium alloy with T6 anodizing heat treatment.High resistance to deformation

and anti fracture.Tensile strength is 572mpa, the thickness is 2.00mm.
2) 5 strength ribs in the inner fan, and one is 3mm thickness for more strong structure and not easy to deform and bench.

4.SKF bearing (deep groove ball bearing + thrust ball bearing)

1) Bearing transmission adopts high strength low alloy steel construction.
2) Strong mechanical properties, precision measurement to ensure longer life.

5.High strength bolts and fasten glue

High strength bolt in level 12.9, made of 30 CrMnSi, with 271 screw fastening glue to prevent loosening.

Wire ropes in 4 directions to keep balance

4 wire ropes with 8mm to keep balance in 4 directions to prevent the fan in large inertial rotation shaking,guarantee operation stability and security.

1. Suitable for any building with a ceiling height of 4 meters or more. The spacing of the structural loading columns should be greater than 20% of the fan diameter to be installed.

2. The load bearing capacity of the roof structure should be more than 150kg, the total weight of the fan equipment is about 125kg(including installation accessories and dynamic load), torque 300N/m, noise level<39db.

3. The distance recommended from airfoil to the floor is 6-8m, Mininum should not be less than 4 meters.

4. Make sure that the fan is installed without chandeliers or other obstructions.

5. It’s not recommend for installation at the site with heat sources or soot.

cheap industrial fan

1. Qixiang is founded in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of HVLS industrial ceiling fan, gearless direct drive PMSSM HVLS ceiling fan, industrial doors and dock leveler.

2. We have more than 100 well known testimonial customers, such as SAIC GM Wuling, FAW Volkswagen, GAC Hino, Pepsi China, Foxconn Group, Panasonic, Midea Group and the South Logistics Group so on.

3. We have passed I S O 9 0 0 1: 2 0 0 8 certification CE, RoHS certification. With years of experience in exporting,our products are popular in Southeast Asia, South Asia, Central America, South Africa as well as European countries.

4. Industrial ceiling fans can improve airflow, create 1-3 level soft natural wind quiet more healthy.

5. It is higher technical threshold inner-rotor design, nature cooling, zero maintenance, compact size, IP64 class and super quiet.
