Air Cooling 300RPM Low Noise High Volume 2m Floor Standing Ventilation Fan with Motor IP55 Protection Large industrial mobile fans is a new type of floor industrial fan, around 1m/1.25m/1.5m/2 meters diameter, can moved to anywhere you need. It also can adjust to different direction, applicable to any heavy industrial environment. More
QX-900 0.37KW DC Galvanized Sheet Factory Greenhouse Poultry Air Ventilation Wall-Mounted Axial Exhaust Fan 220-240V/380V Ball The exhaust fan utilizes the principle of air convection and negative pressure ventilation for cooling. It is a machine that naturally draws in fresh air from the opposite direction of the installation location - such as a door or window - and rapidly forces the stuffy indoor air out of the building. It can improve any poor ventilation issues and achieve a cooling and ventilation effect of 90% to 97%. More
Wall-Mounted Stainless Steel Blade Axial Flow Ventilation Blower Electric Exhaust Fan Air Extractor Box Industrial Poultry OEM The exhaust fan utilizes the principle of air convection and negative pressure ventilation for cooling. It is a machine that naturally draws in fresh air from the opposite direction of the installation location - such as a door or window - and rapidly forces the stuffy indoor air out of the building. It can improve any poor ventilation issues and achieve a cooling and ventilation effect of 90% to 97%. More
Cow Farm Poultry Greenhouse Wall Exhaust Fan Centrifugal 745mm 380V/220-240V Galvanized Sheet Industrial Ventilation The exhaust fan utilizes the principle of air convection and negative pressure ventilation for cooling. It is a machine that naturally draws in fresh air from the opposite direction of the installation location - such as a door or window - and rapidly forces the stuffy indoor air out of the building. It can improve any poor ventilation issues and achieve a cooling and ventilation effect of 90% to 97%. More
Galvanized Sheet Wall-Mounted Ball Bearing Touch Control 1.5kW 220-240V Air Ventilation Exhaust Fan for Factory Farm The exhaust fan utilizes the principle of air convection and negative pressure ventilation for cooling. It is a machine that naturally draws in fresh air from the opposite direction of the installation location - such as a door or window - and rapidly forces the stuffy indoor air out of the building. It can improve any poor ventilation issues and achieve a cooling and ventilation effect of 90% to 97%. More
The YDF series is specially designed for most complex environments where ceiling fans are not suitable. The two installation methods - ceiling mounting and wall mounting - can direct the air flow according to the requirements of the on-site environment. The effective wind speed range of the YDF series exceeds 24 meters, capable of covering more than half the length of a basketball court.
Noise:
63dbDiameter:
2 metersRotate Speed:

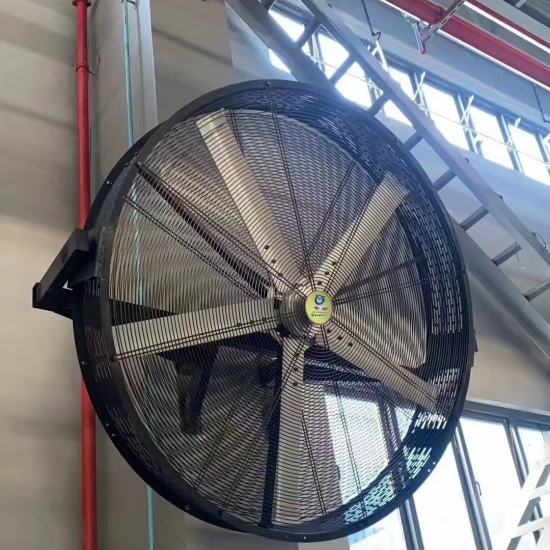

200RPMQixiang 1.5M/2M Hvls 220v Motor Heavy Duty Hanging Wall Fan Strong Steel Large Area Air Cooling Wall Mounted Fans
High-efficiency design: The wall mounted fan utilizes a large air volume and low-speed fan technology, employing a 220V permanent magnet brushless motor.This completely resolves the conflict between air volume and high energy consumption. The infinitely variable speed control can better meet your precise control requirements for air volume.
Item
Power
Diameter
Max speed
Air volume
Noise
Blade Quantity
Weight
QX--F2000
0.95kw
2.0M
260RPM
1350 m³/min
≤65db
5pcs
137kg
QX--F1500
0.95kw
1.5M
400RPM
1000 m³/min
≤65db
5pcs
103kg
Low noise: The compact and well-designed structure, equipped with 6 aluminum alloy blades that conform to aerodynamics and have strong wind force,The permanent magnet brushless motor features high speed, low noise, low energy consumption and long service life.
Long life and durable: All the materials of the exterior are treated with powder coating and paint. The inner frame is made of 2mm thick steel plate, and the overall structure is hollowed out to reduce weight.
Previous :
YDF-2000 1.25M/1.5M/2M Steel Wall Mounted Ventilation FanNext :
YDF-2000 1.25M/1.5M/2M Wall Mounted Fresh Air FanOEM,free installation instructions video,response service in one hour,design solutions for free,24-hours hotline consultation,Shipment within 7 days
The YDF series is specially designed for most complex environments where ceiling fans are not suitable. The two installation methods - ceiling mounting and wall mounting - can direct the air flow according to the requirements of the on-site environment. The effective wind speed range of the YDF series exceeds 24 meters, capable of covering more than half the length of a basketball court.
The YDF series is specially designed for most complex environments where ceiling fans are not suitable. The two installation methods - ceiling mounting and wall mounting - can direct the air flow according to the requirements of the on-site environment. The effective wind speed range of the YDF series exceeds 24 meters, capable of covering more than half the length of a basketball court.
The YDF series is specially designed for most complex environments where ceiling fans are not suitable. The two installation methods - ceiling mounting and wall mounting - can direct the air flow according to the requirements of the on-site environment. The effective wind speed range of the YDF series exceeds 24 meters, capable of covering more than half the length of a basketball court.
Qixiang, as a manufacturer, was founded in 2006, integrating various departments of R&D, production, sales and after-sales service for the industrial HVLS ceiling fans, commercial fans, industrial doors, logistics parking equipment and other energy saving devices. With years of experience in exporting, our products are popular in Southeast Asia, South Asia, Central America, South Africa as well as European countries.
Industrial Ceiling Fans has become more and more popular and widely used in factories. The reason is that the industrial ceiling fans are safe, energy saving, efficient, silent and large wind volume, which improves the production capacity for the enterprise, saves costs for the company, and creates a comfortable operating environment for employees.
The YDF series is specially designed for most complex environments where ceiling fans are not suitable. The two installation methods - ceiling mounting and wall mounting - can direct the air flow according to the requirements of the on-site environment. The effective wind speed range of the YDF series exceeds 24 meters, capable of covering more than half the length of a basketball court.
High wind volume and low speed make the space produce 1-3 levels of three-dimensional natural wind, covering a diameter of 40-50m (1450m2), somatosensory cooling of 3-5 ° and silence value of 38dB, which is close to the standard of sleep level. Make the working environment more comfortable and healthy, improve the production efficiency of employees, make the working space spacious and improve the utilization rate of space, and ensure the safety of operation, which is not only airflow, but also cash flow.
The HVLS Fans of Qixiang are quietly change your working environment, covering a range of 1450m2 with the power consumption of less than 1KWH, which can improve the production efficiency, the safety as well as the energy reservation, totally bring you the ultimate refreshing comfort experience.
