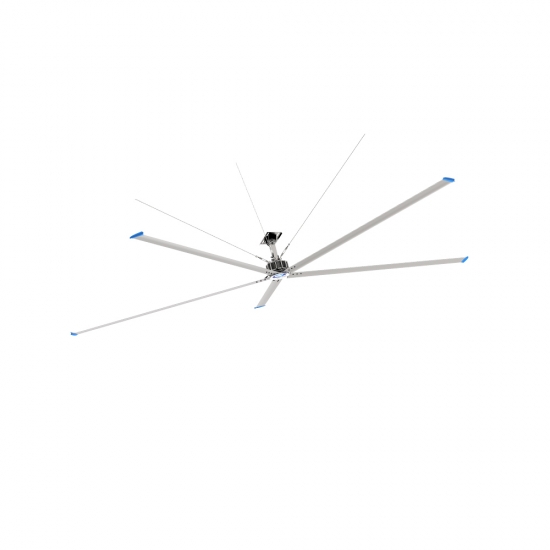

20ft High Volume Low Speed Factory Big HVLS Fans

Qixiang servo direct drive HVLS fans are produced with 8 protection measures, IP level up to 64, is the unique product of the entire industry. It can create a healthy dry, clean operating environment. It's a ventilation cooling perfect helper for the enterprise.

  • Noise:

    39DB
  • Diameter:

    2.5-7.2m,OEM
  • Coverage Area:

    1450SQM
  • Frequency:

    50HZ/60HZ
  • No. of Blades:

    5pcs
  • Power Supply:

    220V/380V
  • Rotate Speed:

    50-120RPM
  • Power:

    0.66KW/0.88KW/1.3KW
Products description

20ft High Volume Low Speed Factory Big HVLS Fans

HVLS Fans  in the run time can produce 3-5 three-dimensional natural wind, will continuously to the cool autumn wind, to the person to think of, but in the workshop without good air circulation in the workshop is won't make indoor staff feel the cool autumn wind,  is to promote the air circulation, make indoor air flow continuously to form an air circulation system!


20ft High Volume Low Speed Factory Big HVLS Fans

Market Price

$3200

Factory Price

$3000/2500

Price Range

1 - 30/$3000

Price Range

30 - 100/$2500

Product Origin

China

Shipping Port

Guangzhou, Shenzhen

Lead Time

5-10 Days

Payment & Shipping

T/T, L/C, D/A, D/P, Western Union, Money Gram



1)Product Parameters(Big Sizes)

Model

HVD-H7200

HVD-B7200

HVD-B6700

HVD-B6200

Diameter

7.2m(24ft)

7.2m(24ft)

6.7m(22ft)

6.2m(20ft)

Blades Qty

5

5

5

5

Weight

115KG

109KG

105KG

100KG

Power

1.3KW

0.88KW

0.88KW

0.88KW

Max Speed

58RPM

50RPM

55RPM

60RPM

Max air Volume

15197m3/min

14515m3/min

12560m3/min

10747m3/min

Power Supply

380V/220V

380V/220V

380V/220V

380V/220V

MAX. Current

3.1A/4.5A

2.2A/3A

1.8A/3A

1.8A/3A

Noise Level

<39db

<39db

<39db

<39db


2)Product Parameters(Small Sizes)

Model

HVD-S5200

HVD-S4200

HVD-S3600

HVD-S3000

HVD-S2500

Diameter

5.2m(17ft)

4.2m(14ft)

3.6m(12ft)

3.0m(10ft)

2.5m(8ft)

Blades Qty

5

5

5

5

5

Weight

78KG

75KG

72KG

70KG

65KG

Power

0.66KW

0.66KW

0.66KW

0.66KW

0.66KW

Max Speed

70RPM

80RPM

90RPM

100RPM

120RPM

Max air Volume

7065m3/min

5306m3/min

4522m3/min

3140m3/min

2543m3/min

Power Supply

220V

220V

220V

220V

220V

MAX. Current

2.6A

2.6A

2.6A

2.6A

2.6A

Noise Level

<39db

<38db

<38db

<38db

<38db


17ft big ceiling fans

1.Permanent magnet servo drive motor
1) IP64,small size,no lubricating oil, low energy consumption, no maintenance, can work for nearly 15 years, beautiful appearance, especially suitable for villas, churches, cafes, restaurants, etc.
2) The motor is designed with high pyrolysis technology and the operating temperature is about 38 °C.
3) Internal precision Hall induction digital closed-loop control, can correctly control the switch station, stepless speed change.


2.Integrated control box

Servo drive system can make fan have a fast reaction with DSP control core and inner complex control algorithm. In addition, it has continuously variable, precise localization and the protection system with over voltage,over currents.


3.Fan blades

1) 7075 aviation aluminum magnesium alloy with T6 anodizing heat treatment.High resistance to deformation

and anti fracture.Tensile strength is 572mpa, the thickness is 2.00mm.
2) 5 strength ribs in the inner fan, and one is 3mm thickness for more strong structure and not easy to deform and bench.


4.SKF bearing (deep groove ball bearing + thrust ball bearing)

1) Bearing transmission adopts high strength low alloy steel construction.
2) Strong mechanical properties, precision measurement to ensure longer life.


5.High strength bolts and fasten glue

High strength bolt in level 12.9, made of 30 CrMnSi, with 271 screw fastening glue to prevent loosening.


industrial fans italy

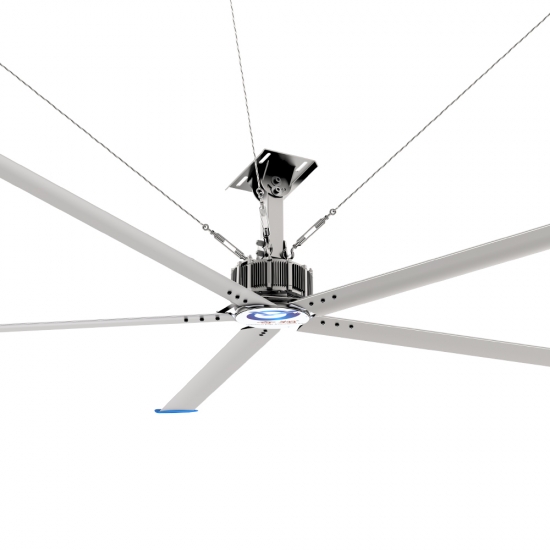

Wire ropes in 4 directions to keep balance

4 wire ropes with 8mm to keep balance in 4 directions to prevent the fan in large inertial rotation shaking,guarantee operation stability and security.



1. Suitable for any building with a ceiling height of 4 meters or more. The spacing of the structural loading columns should be greater than 20% of the fan diameter to be installed.

2. The load bearing capacity of the roof structure should be more than 150kg, the total weight of the fan equipment is about 125kg(including installation accessories and dynamic load), torque 300N/m, noise level<39db.

3. The distance recommended from airfoil to the floor is 6-8m, Mininum should not be less than 4 meters.

4. Make sure that the fan is installed without chandeliers or other obstructions.

5. It’s not recommend for installation at the site with heat sources or soot.


big ass ceiling fan



1. Qixiang is founded in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of HVLS industrial ceiling fan, gearless direct drive PMSSM HVLS ceiling fan, industrial doors and dock leveler.

2. We have more than 100 well-known testimonial customers, such as SAIC GM Wuling, FAW Volkswagen, GAC Hino, Pepsi China, Foxconn Group, Panasonic, Midea Group and the South Logistics Group so on.

3. We have passed I S O 9 0 0 1: 2 0 0 8 certification  CE, RoHS certification. With years of experience in exporting,our products are popular in Southeast Asia, South Asia, Central America, South Africa as well as European countries.

4. Industrial ceiling fans can improve airflow, create 1-3 level soft natural wind quiet more healthy.

5. It is higher technical threshold inner-rotor design, nature cooling, zero maintenance, compact size, IP64 class and super quiet.
